FELK Actuators

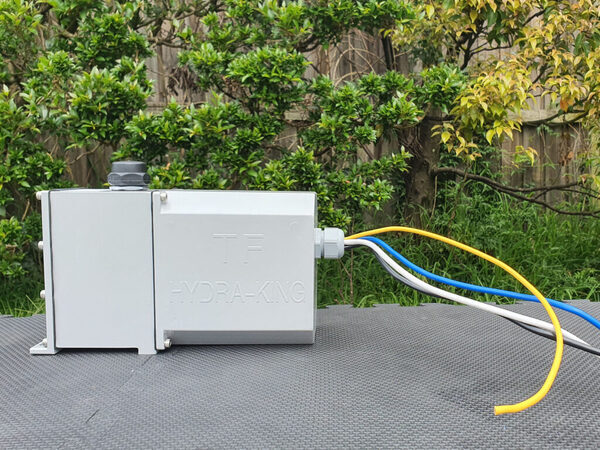

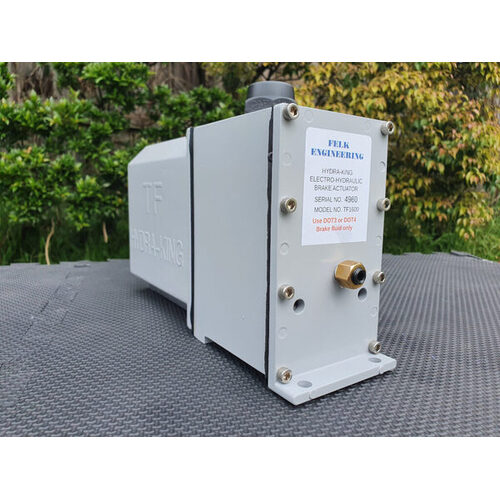

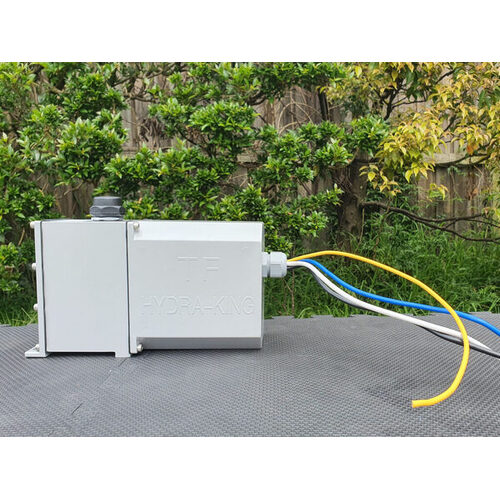

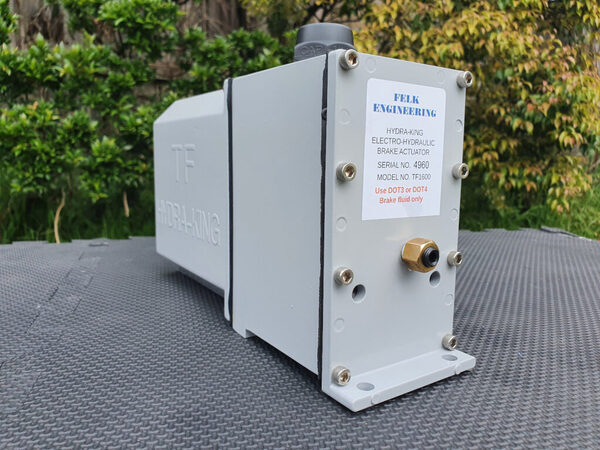

The TF Electro-Hydraulic Actuator, designed and developed by Ted Felk, is made in Australia by FELK Engineering using FELK designed and imported parts.

The unit is rated at 1600 psi and 12 volts.

The TF design features separate enclosures for the oil reservoir and the motor/circuit board. In the event there is a need to repair/replace the solenoid or circuit board, access to the oil reservoir section of the actuator is not required. By removing just 4 screws on your TF actuator, the motor/circuit board and solenoid cover come off for easy access and repair.

FELK Engineering makes the actuator unit in our own factory, therefore parts are readily available.

TF actuators are a neat and compact, advanced design unit measuring only 255mmL x 84mmW x 150mmH.

The actuator installation only takes a few minutes; all that is needed to install your TF Electro-Hydraulic Actuator on the drawbar of a trailer is a simple bracket and a U bolt.


The TF unit will work with all Proportional/Digital In-Cab Controllers:– Dexter Predator, Hayes Genesis, Endeavor, Tekonsha P3, and Redarc Tow-Pro.

A proportional controller switches to neutral mode (as does the actuator) when the trailer stops, therefore oil stops pumping and damage to the actuator is avoided.

Time based in-cab controllers are NOT ALLOWED and will void the warranty of our actuator.

Time based controllers work the actuator at full power even when the brake pedal is depressed at traffic lights or in traffic jams. This will overheat or even burn out the circuit board or the motor of the actuator.


Barcode # EBIQ7
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.010500000m3
Unit Of Measure 1
