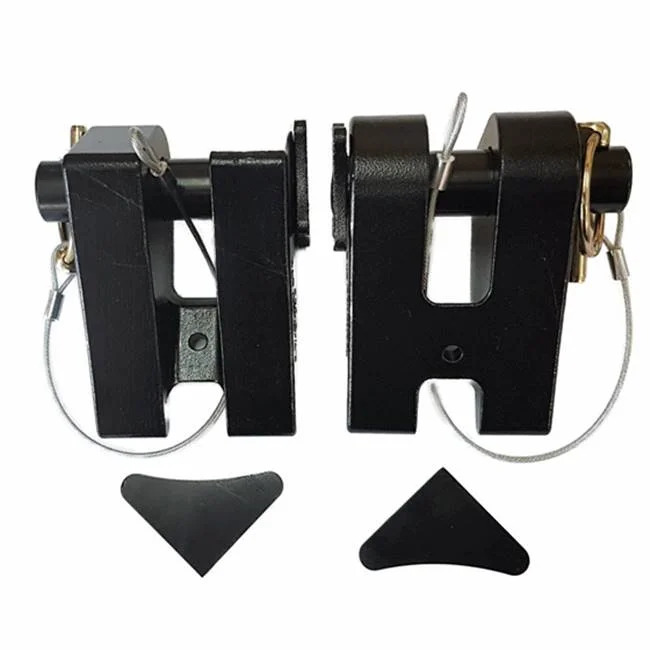

13.5t x 13mm G80 G100 Truck Safety Chain Holder

13mm x 13.5t G80 G100 Truck Safety Chain Holder

13mm x 13.5t G80 G100 truck safety chain holders use a 4140 high tensile pin on vehicles that weigh 13.5 tonne.

Chain Holder Installation Instructions:

• Weld the safety chain holder to the tow bar.
• Weld safety chain holders directly to the trailer chassis rail as close to the coupling.
• Aluminium Trailers: Weld the chain holder to a plate and bolt it to the trailer via 4 x high-tensile bolts.
• The triangle tag is a safety feature that prevents the 4140 pin from falling out of the holder.

How to weld G80 Safety Chain Holders onto trailer chassis. Made by Couplemate.

Testing G80 G100 Safety Chain Holders

Road safety starts with product safety and product testing.

The 200t press above is set up to destroy the safety chain holder to its breaking level and record the data.

Welding plays a crucial role in safety. Incorrect or unprofessional welding causes dangerous situations.

• Every truck with a tow bar that tows a trailer over 3.5t must have a pair of safety chain holders attached. The holder has a 4140-grade pin.
• Mount the chain holders on either side, adjacent and as close as possible to the tow bar coupling.
• Furthermore, the attachment must withstand static forces incurred during towing and, in particular, be resistant to cracks or breaks.
