5 Leaf Shackle SPRING x 630mm x 45mm x 8mm 650kg Black

$75.00
6 IN STOCK
Just select Afterpay as your payment option during checkout


Calculate Shipping

5 Leaf Eye to Eye Spring - Painted 180MM CAMBER

Product Specifications

Product Code MAN5EES-P-C180
Width 8MM
Gauge 45MM
No. of Leaves 5
Load Capacity 1300KG P/P
Eye to Eye Length 640MM
Eye to Centre Bolt 330MM
Centre Bolt to Eye 330MM
Camber 180MM
Shack. Bolt Diameter 14MM
Finish PAINTED
Type EYE-EYE SPRING
Weight

7.3KG

5 Leaf / 1300kg Per Pair / 2250kg in load sharing tandem

BLACK 5/8" hole, Nylon Bush

(BUSH IS REPLACABLE WTH 1/2" OR 9/16" HOLED) SOLD SEPERATELY

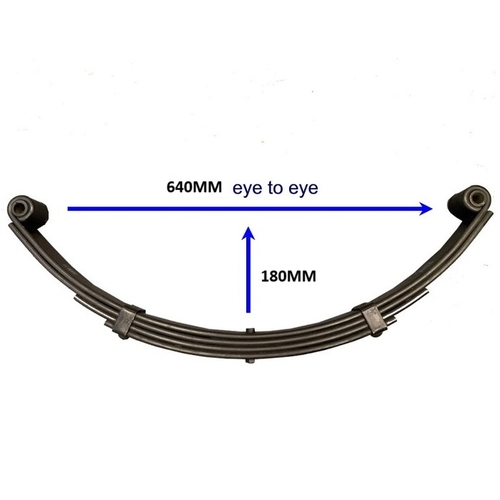

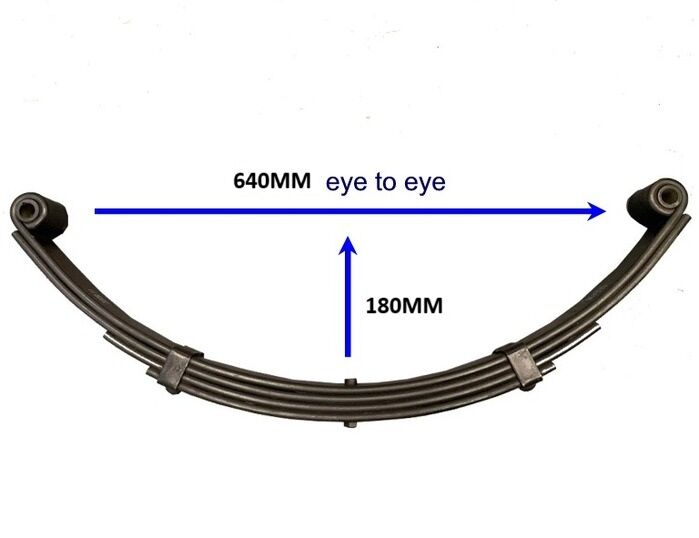

EXTRA CURVED !!!!! approx. 180mm.

That measurement is from the top side of the spring (in the centre) to the level between the 2 mounting holes.

Sold individually

Please note! All Galv. listed springs will often be supplied in a Dacromat or Super Zinc finish, subject to availability.

** Please note:- If you are buying multiple springs and no shipping option is available, this is because it is over-weight to send as one package. Please split your order and re-try, or call us on 07 5495 2949.

(SSH6305C)

SKU SSH6305C
Shipping Weight 8.0000kg
Shipping Width 0.050m
Shipping Height 0.400m
Shipping Length 0.650m
Shipping Cubic 0.013000000m3
Unit Of Measure 1
