Curt Rebellion XD Pintle Mount Attachment #45950 TBMADJ

​​​Product Details

This accessory for the Rebellion™ XD ball mount features standard pintle hole spacing to accept any CURT plate-mount pintle hitch. The holes are spaced 3-5/16" wide by 1-3/4" high. This pintle mount attachment also features an integrated rubber dampener to compliment the Rebellion™ XD ball mount's resistance to jerking, jarring, vibrations and noise.

The Rebellion™ XD adjustable ball mount is a leap forward in cushion hitch technology. It provides more control, confidence and a more comfortable ride, all while protecting your towing system from jerking, jarring and rattling.

The Rebellion™ XD shock-absorbing hitch ball mount is constructed with ShockDrop™ technology. Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank. The isolator provides dynamic, adaptive suspension of the coupling point to reduce jerking and jarring for a more comfortable towing experience.

Unlike other cushion hitch and torsion hitch ball mounts, the Rebellion™ XD has no airbags or bearings, making the unit virtually maintenance-free. When you're ready to tow, simply mount it onto your 2" receiver hitch like you would any other ball hitch. The Rebellion™ XD will resist vibrations and rattling at the trailer coupling point, resulting in smoother, quieter towing. There is no need for an anti-rattle hitch pin or anti-rattle shim.

The Rebellion™ XD is not included in this package and must be purchased separately.

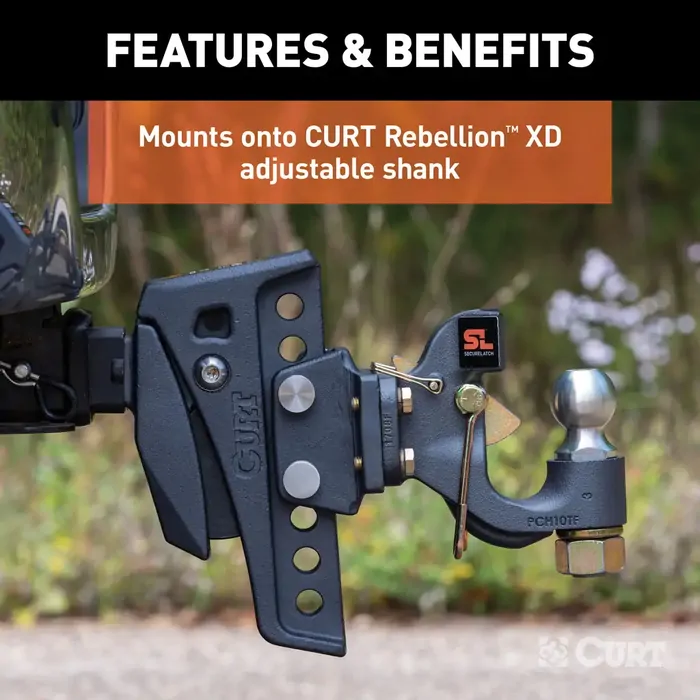

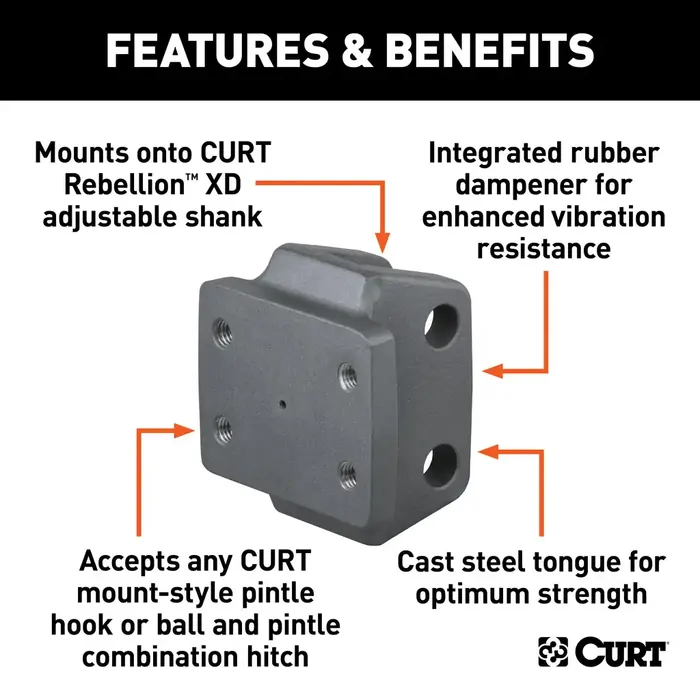

• Mounts onto CURT Rebellion XD adjustable shank

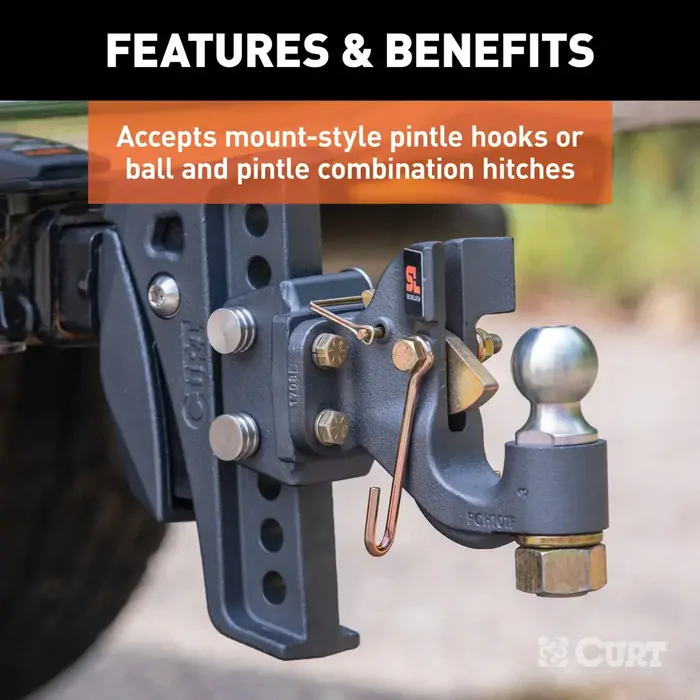

• Accepts any CURT mount-style pintle hook or ball and pintle combination hitch
• Integrated rubber dampener for enhanced vibration resistance
• Constructed from cast steel for optimum strength

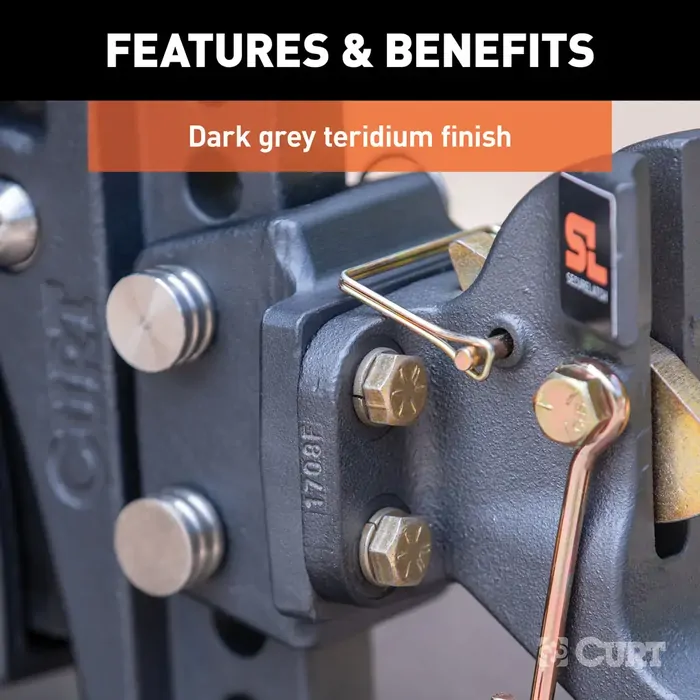

• Protected by a dark grey teridium powder coat finish
• Standard pintle plate holes spaced 3-5/16" wide by 1-3/4" high
• Weight capacity limited to Rebellion XD ball mount
• Limited lifetime warranty (one-year finish, one-year parts)

Notes:

• Includes four bolts to mount the pintle hitch (Rebellion XD sold separately)

• PRODUCT SPECIFICATIONS

• FinishDARK GREY TERIDIUM
• Hub WarehouseD25
• Master Case Qty4
• MaterialCAST STEEL
• Mount Type DescriptionNot Applicable
• Pallet Qty0.000
• Parcel AllowedYes
• Part Type*
• Shipping Weight8.200
• Side Application Type DescriptionNot Applicable
• WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)
